Mermaid Preview

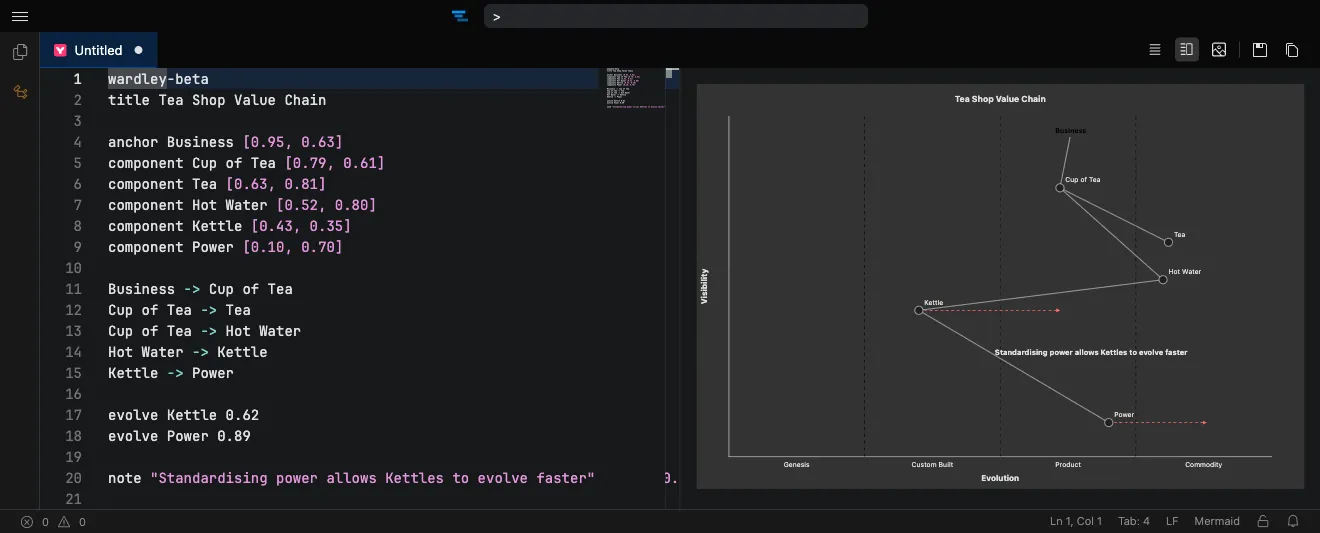

Tachi Code renders Mermaid diagrams in a live preview pane. Open any .mermaid (or .mmd) file, or write a mermaid code block in a Markdown file, and the diagram renders as you type.

Supported diagram types

Tachi Code bundles Mermaid 11.15.0 and recognizes its full range of diagram types, including the newest ones — eventmodeling, ishikawa, treeView, venn, and wardley.

Each diagram type is also recognized as its own language for syntax highlighting. See the Languages page for the complete list.

Exporting diagrams

Right-click a rendered diagram in the preview to export it as an image:

• Download as PNG — saves a raster image of the diagram.
• Download as SVG — saves the diagram as a scalable vector graphic.

Default preview mode

The Mermaid preview defaults to an editor-and-preview split view. Change the layout used when you first open a Mermaid file with the mermaidPreview.defaultMode setting, which supports Side by Side, Hidden, and Fullscreen modes.

You can also toggle whether the preview updates as you type with mermaidPreview.livePreview .
